Wholesale 8-Inch Mining Pressure-Resistant External Drainage Flat Hose Pipe With Storz Connectors
Home / Products / Special Mining Outer Dewatering Hose / 8-Inch Mining Pressure-Resistant External Drainage Flat Hose Pipe With Storz Connectors
  • 8-Inch Mining Pressure-Resistant External Drainage Flat Hose Pipe With Storz Connectors
  • 8-Inch Mining Pressure-Resistant External Drainage Flat Hose Pipe With Storz Connectors
  • 8-Inch Mining Pressure-Resistant External Drainage Flat Hose Pipe With Storz Connectors
  • 8-Inch Mining Pressure-Resistant External Drainage Flat Hose Pipe With Storz Connectors
Special Mining Outer Dewatering Hose

8-Inch Mining Pressure-Resistant External Drainage Flat Hose Pipe With Storz Connectors

  • 8-Inch Mining Pressure-Resistant External Drainage Flat Hose Pipe With Storz Connectors
  • 8-Inch Mining Pressure-Resistant External Drainage Flat Hose Pipe With Storz Connectors
  • 8-Inch Mining Pressure-Resistant External Drainage Flat Hose Pipe With Storz Connectors
  • 8-Inch Mining Pressure-Resistant External Drainage Flat Hose Pipe With Storz Connectors
No previous article   |   NEXT

+ Contact us
APPLICATION AREA

  • Forestry Fire Protection

  • Agricultural Fire Protection

  • Industrial Fire Protection

  • Municipal Fire Protection

MD-800 · STORZ
HIGH VOLUME MINING DRAINAGE
8-Inch Mining Pressure-Resistant External Drainage Flat Hose Pipe With Storz Connectors
Bulk water transfer · Mine dewatering · High pressure tolerance
200mm
Internal bore
10 Bar
Working pressure
30 Bar
Burst pressure
DN200
Storz connection
5800
L/min
at 10 Bar working pressure
Equivalent to 3 x 4-inch hoses · Single line efficiency
Recommended for high volume pit dewatering
Construction type
Layflat · Circular woven polyester + high abrasion SBR cover + EPDM liner

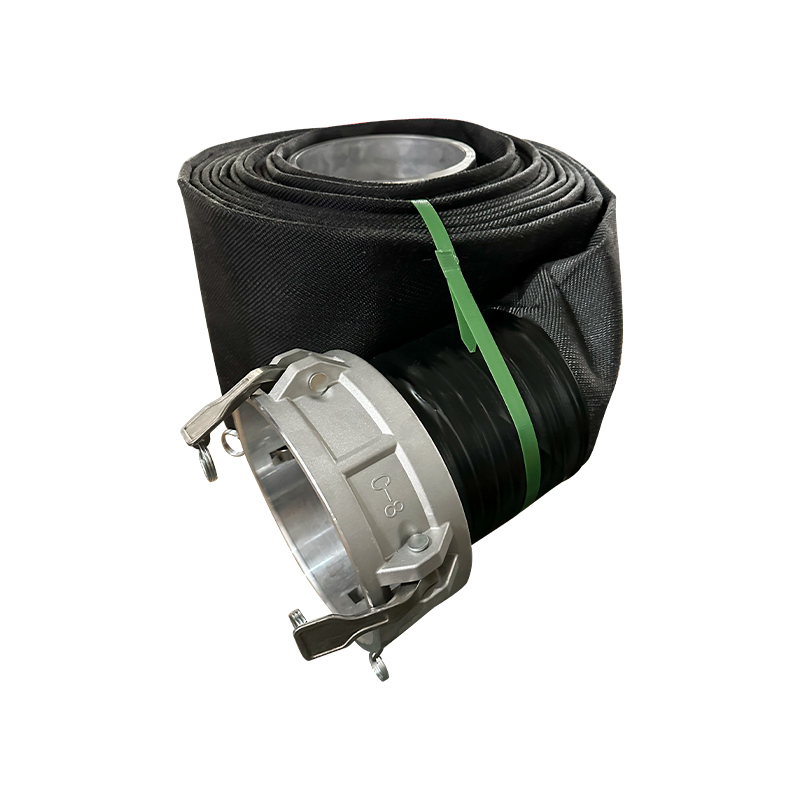

Storz connector
8 inch aluminum alloy · Genderless · Locking handles · O-ring sealed
Wall thickness
Outer cover 2.5mm · Total wall 4.2mm
Standard length
30m · 50m · 100m (custom available)
Weight full length
approx 110 kg per 30m (dry)
Pressure retention by temperature
-20°C to 0°C
9 Bar max
0°C to 40°C
10 Bar rated
40°C to 60°C
8 Bar max
External mining deployment
Open cast mine drainage
Tailings dam water transfer
Large volume pit recovery
Stormwater bypass systems
Process water supply lines
S
Storz DN200 connection: Female/male identical design. Rotate 90 degrees to lock. Visual alignment marks for easy field connection.
!
Do not exceed working pressure. Use safety cables on steep slopes. Inspect Storz gasket before each coupling.
8 inch mining grade · Storz fitted · Hydrostatically tested
Pressure resistant external drainage series

Product Description

8-Inch Mining Flat Hose with Storz Connectors, Heavy-duty flat hose for high-pressure drainage in mining. Features quick-connect Storz couplings and compact storage.

Key Specs:
8" diameter, 300 PSI rating
Reinforced rubber construction
Standard Storz connectors
Lies flat when empty
Ideal for mine dewatering and slurry transport. Custom lengths available.
